Soft, rubber-like polymer materials are widely used in sports and lifestyle such as footwear, sports guards and protective gear. Additive manufacturing is a production technology well suited to the sports and lifestyle market as it allows for cost-efficient personalization and customization. Actual adoption, however, will require availability of materials that combine the right property set with easy printing and a technology that can scale economically.
Typically, soft and elastomeric materials don’t 3D print easily. In Addigy P3001 for SLS, Stratasys' material scientists successfully combine both. A Shore hardness of A88 and D35 with elongation at break of the thermoplastic copolymer (TPC) exhibits a very high energy return - above the 50-60% usually found in footwear materials.

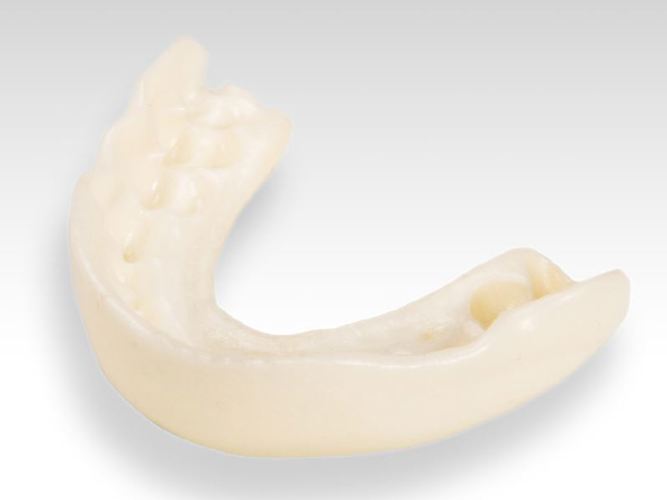

End-users can benefit from better hygiene, improved communication in team sports, and enhanced client comfort with 3D scanning rather than plaster bites. Addigy P3001 3D printed parts can be post-processed for smooth surfaces, making them aesthetically pleasing.
Test Method: ISO 11357-1/-3
Unit: °C
Value: 160
XY direction, flat
Test Method: ISO 868
Value: 88
Test Method: ISO 527-1/-2
Unit: MPa
Value: 50
Test Method: ISO 527-1/-2
Unit: MPa
Value: 42
Test Method: DIN EN ISO 180
Unit: kJ/m^2
Value: 45
Test Method: ISO 527-1/-2
Unit: MPa
Value: 5.5
Unit: kg/m^{3}
Value: approx. 1080
Unit: kg/cm^(3)
Value: 420-500
Typically, soft and elastomeric materials don’t 3D print easily. With Addigy P3001 for SLS, our material scientists have managed to successfully combine both. At a Shore hardness of A88 and D35 with high elongation at break, the thermoplastic copolymer (TPC) exhibits a very high energy return of >70%.
Need further information on Addigy P3001? Get in touch with our additive manufacturing material experts.
Our team is eager to help you understand the capabilities of our broad base of materials and how they serve a wide range of applications. Whether you’re in the automotive, aerospace, or medical field, our experts will work with you to tailor a solution that fits your specific needs.
Contact us today to schedule a consultation.
