Flight Safety Soars to New Heights with 3D Printing

Recommended Downloads

The right technology for your case: DLP or LCD? Saving time and money by 3D printing jigs and fixtures. Medical designers: how to incorporate 3D printed materials.

China Eastern Airlines explores additive manufacturing for aircraft maintenance.

Modernizing their fleet.

China Eastern Airlines (CEA) operates a modernized fleet of over 600 aircrafts, reaching 1,062 destinations in 177 countries. To ensure the flight safety, Eastern Airlines Technic Co., Ltd. shoulders the important tasks of CEA’s aircraft maintenance and part repair. Aviation requires extremely high safety standards, so what inspired CEA to begin using additive manufacturing (AM)? In 2015, CEA’s first brand-new Boeing 777 passenger aircraft had misprinted seat signs. The cost for purchasing replacements was too expensive for such a small error, so engineers used 3D printing. The new signs were ready in three days at a much lower cost, so CEA quickly set up a dedicated AM lab.

China Eastern Airlines plans to introduce the new Airbus 350 which is equipped with over 1,000 3D-printed flying parts. As a complementary method to the traditional manufacturing, 3D printing will become more widely adopted in the future. It’s critical to gain the expertise and be well-prepared for future challenges.

Chen Zhiyi, Eastern Airlines Technic Co., Ltd.

CEA additive manufacturing lab.

Eastern Airlines Technic set up the lab with a Fortus® 450mc and ULTEM™ 9085 resin, a high-performance thermoplastic material with high strength-to- weight ratio compliant to relevant FAA and CAAC25 requirements. Since its inception, the lab has successively produced and installed more than 300 finished parts, making CEA the first domestic airline to have 3D-printed interior parts in commercial planes. By 3D printing small batches, the company cuts lead times and cost of purchasing spare parts, while still ensuring safe, comfortable flights for passengers. “In the past, if any cabin parts were broken, we had to buy new ones from designated suppliers, which could take up to three months. Sometimes there were no available parts at all,” said Chen Zhiyi, Additive Manufacturing Lab R&D engineer. The long lead times meant broken parts couldn’t be fixed quickly, which downgraded passengers’ flying experiences. “That’s why we use 3D printing, it solves this problem in an efficient and innovative way,” said Zhiyi.

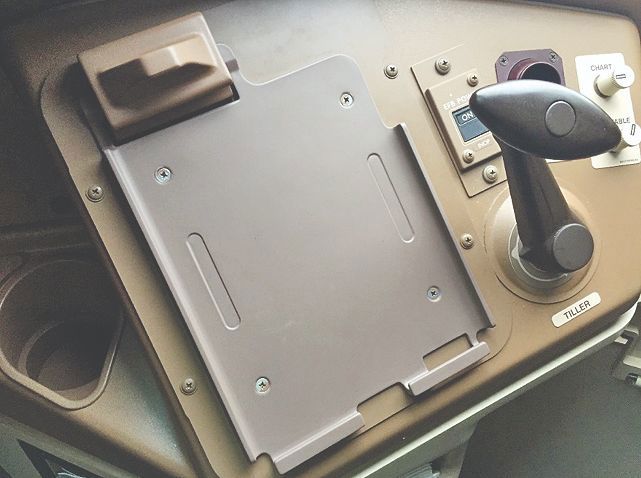

Many airline pilots prefer an electronic flight bag instead of searching through thick
flight manuals. Eastern Airlines Technic designed and 3D prints this electronic flight
bag support device.

3D printed interior parts.

The AM lab has enabled Eastern Airlines Technic to transform their business from proposal submission to part design to production. The lab has developed a number of different aircraft interior parts, including seat armrests, cabin door handle cover plates, baggage holder lock catches, electronic flight bag supports and newspaper holders. Many pilots use an electronic flight bag instead of thick flight manuals, so the AM lab designed and 3D printed a custom support device.

Various aircrafts, including Airbus 330 and 320, Boeing 737 and several commercial airlines have purchased and installed this device. Newspaper holders on the back of cabin seats are easily damaged from frequent collisions with dining carts and broken parts can injure passengers. Since lead times for ordering new parts is quite long, the lab can design, 3D print and install new ones quickly while still meeting strict approval guidelines. By creating replacement parts in house, Eastern Airlines Technic can efficiently bridge the gap in the current supply chain system and maintain a comfortable flying experience for passengers.

Future plans.

The Additive Manufacturing Lab of Eastern Airlines Technic has transformed into an advanced manufacturing department with expanding capabilities. “China Eastern Airlines plans to introduce the new Airbus 350 equipped with over 1,000 3D-printed flying parts. As a complementary method to the traditional manufacturing, 3D printing will become more widely adopted in the future. It’s critical to gain the expertise and be well-prepared for future challenges,” said Zhiyi. The lab plans to explore more AM applications in aviation, such as safety pin storage boxes, 3D printed molds and customized training aids, aiming for intelligent manufacturing with zero inventory, on-demand production and digital management.
