Case Study

Balea Streamlines prototyping process with in-house 3D printing.


Outer case prototype that houses an electronic weighing system, 3D printed in ASA material.

A continuation of market leadership with 3D printing.

Based in France, Balea is one of Europe’s only manufacturers of weight control systems for the supply chain industry. The family-owned business produces systems for pallets, trolleys and boxes that help companies correctly weigh and load the right amount of goods when preparing orders.

Over the years, the company had maintained its market leadership by continually innovating and optimising new and existing product solutions. However, when it came time to prototype parts for new products, the services of third-party injection moulding companies were often enlisted. This made the process more costly and time-consuming, taking upwards of several months for manufacturing and delivery.

Redefining the workflow.

Balea ultimately selected Stratasys as its technology partner after coming away impressed by the easy-to-use interface and quick turnaround of the F170 3D printer and its GrabCAD Print software.

“Having seen demonstrations with the GrabCAD Print software and the production of 3D printed parts, we realised that integrating it at our facility would save us a huge amount of time and put us firmly in the driving seat,” says Mestre. “Not only that, but its compact size would enable us to operate it directly from our office space instead of the workshop.”

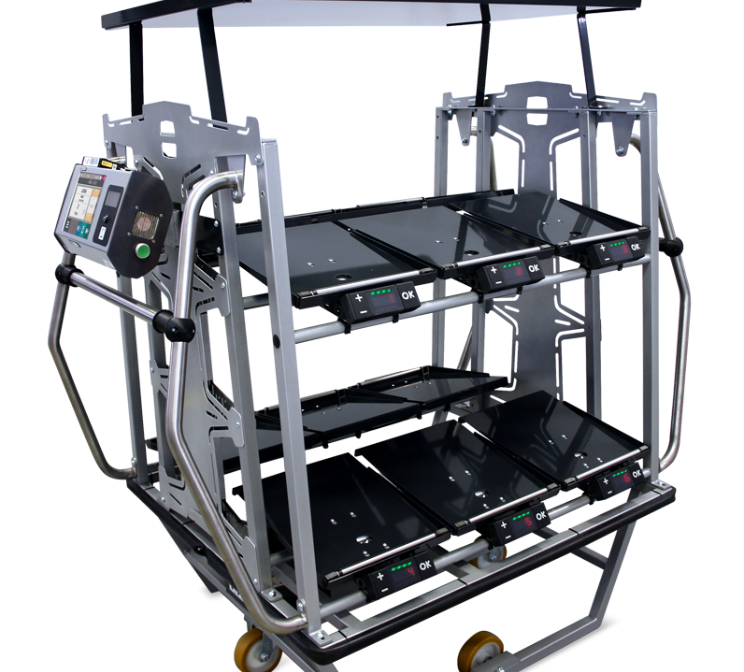

Balea trolley equipped with electronic weighing systems to load the right amount of goods during preparation of orders.

Printing engineering-grade prototypes.

Using its F170 3D printer, the Balea team predominantly produces parts using Stratasys’ production-grade ASA thermoplastic. The material’s resilience allows for functional tests to be performed and its non-conductive properties make it fully compatible with the electronic devices they produce.

Among the parts created are outer cases that house the electronic weighing devices. Prior to having the on-site Stratasys 3D printer, prototyping these outer housings would have required injection moulding via an external provider before final part manufacture in cast iron or aluminum.

This technology has transformed our prototyping process and delivered efficiencies that we could previously only dream about.

Additionally, the ASA material provides a surface fi nish that meets Belea’s high standards — so much so that the team even used it to manufacture a model to exhibit at an industry event.

“Our team wanted to unveil a new trolley and weight system during a key presentation at an important tradeshow. Stratasys 3D printing technology enabled us to design and manufacture a new model with 3D printed end-use parts. We were able to make four or five iterations of the design to get a perfect product and still had plenty of time to spare going into the event.”

Welcoming a new, flexible approach.

Now with more design freedom, quicker turnaround times and the ability to iterate customised solutions for clients at a lower cost, the integration of 3D printing has completely transformed Belea’s way of doing business.

“The F170 allows us to think differently because we’re no longer constrained. This gives us the design freedom to prototype accurate fit-for-purpose parts while slashing turnaround times. This technology has transformed our prototyping process and delivered efficiencies that we could previously only dream about,” says Mestre.

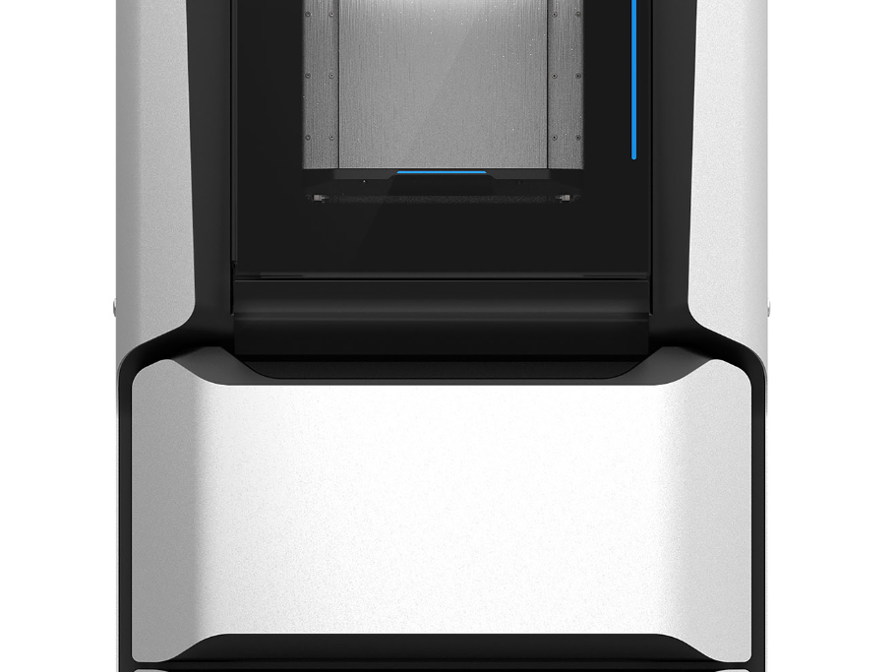

The Stratasys F170 3D printer.

Having the 3D printer on site, just next to our desks, makes it fast and simple to produce a functional prototype. Within a day we have fully 3D printed parts.

According to Max Mestre, R&D Office Manager at Balea, “Not only would we have to wait as long as between three to six months from start to finish, subcontracting parts through a third-party supplier would have typically cost us 20,000 euros per prototype. On top of that, we were constrained in that any design changes would necessitate an entirely new mould and would have cost us another 20,000 euros — effectively eliminating that as an option.”

Because of these factors, prototypes were infrequently commissioned, forcing the design and manufacturing team to make do with 2D designs — which was less than ideal. So with an aim to take control of the process and create more design flexibility, they began the search for technologies that could address their prototyping needs.

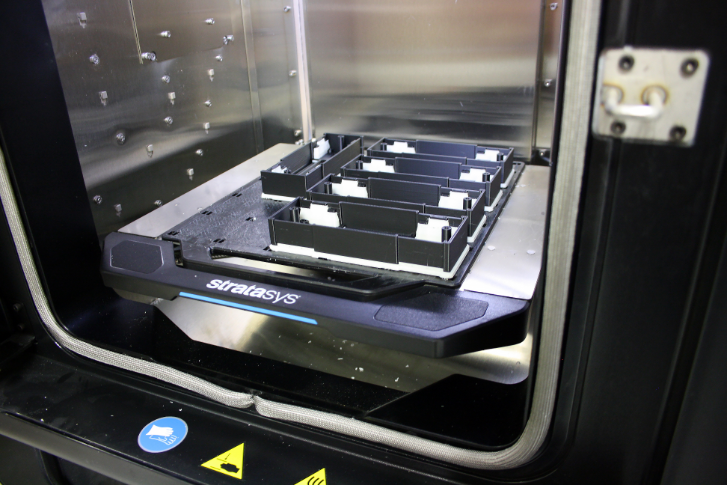

Outer case prototypes that house electronic weighing systems on trolleys, produced with the Stratasys F170 3D printer.
