The potential for 3D printing synthetic myocardium.

February 01, 2020

The potential for 3D printing synthetic myocardium.
Recommended Downloads
Empowering brilliance with STEM. Top five reasons to integrate PolyJet technology into your product development lifecycle. Accelerate Product Design with Stratasys

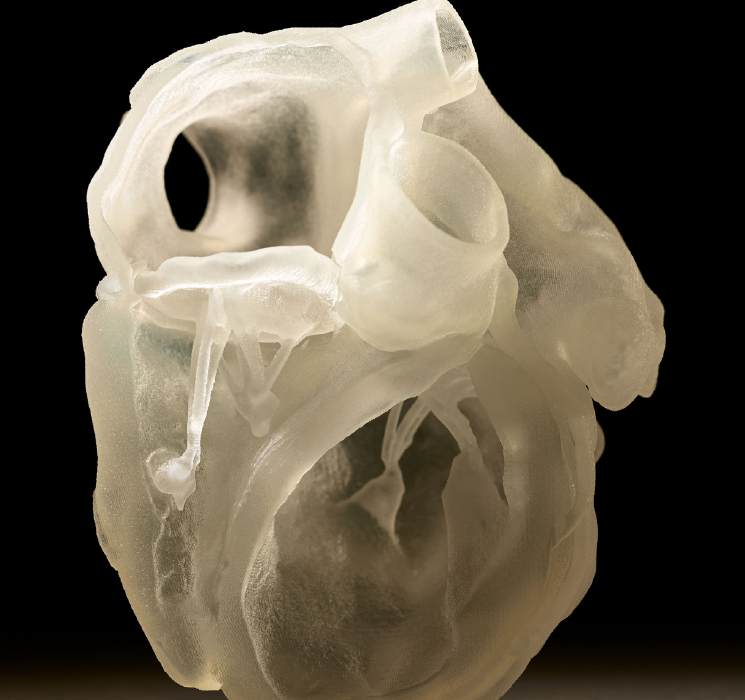

Biomedical tests confirm the potential for 3D printing synthetic myocardium with the Stratasys J750 Digital Anatomy printer.

Introduction

Cardiac applications of 3D printed patient-specific models (PSMs) include surgical training, complex procedural planning, and the creation or refinement of cardiac devices. As structural heart interventions become increasingly complex, the ability to effectively model patient-specific geometry, as well as the interaction of devices within and around that geometry, becomes even more valuable to advance surgical interventions. Until now, the focus of PolyJet™ 3D printing technology and other traditional anatomical modelling methods has been on achieving precise external anatomical geometry and appearance. The next frontier in 3D printed PSMs is the simulation of the biomechanical properties of human tissue.
Perfecting surgical skills with Tissue Matrix

Objective

To replicate the physiological response of native cardiac tissue including vessel walls, chamber walls, and valve leaflets, Stratasys studied the mechanical behavior of each structure in collaboration with medical device manufacturers, world-class research institutions, hospitals and medical personnel. Findings from these studies were used to develop software and materials to simulate those properties. Scientists and engineers from Medtronic, a global leader in medical device manufacturing, conducted an independent third-party comparison of the Digital Anatomy myocardium materials to porcine cardiac tissue. The following summarizes the findings and presents implications for future work in material development.

Methods

The mechanical properties of porcine myocardium were compared to those from a wide spectrum of 3D printed myocardium material blends (Table 1). Porcine myocardium was chosen as the baseline for comparison because of its similarity to human tissue, availability, and the precedent for its use in cardiac device preclinical testing. All samples were printed on the Stratasys J750™ Digital Anatomy™3D printer.
Perfecting surgical skills with Tissue Matrix
Table 1 - Digital Anatomy Myocardium Material Properties

Key FindingsCompliance

The Digital Anatomy material properties were either within the same range of compliance as the porcine myocardium or stiffer. At anatomically relevant thicknesses, stiffness values of printed Digital Anatomy samples corresponded to most of the chambers of the porcine heart (Figure 1).
Small Pin - Load vs. Extension

Compliance Variability

Porcine myocardium showed considerable variability in compliance from chamber to chamber and withineach chamber (Figure 2). In contrast, the Digital Anatomy samples were highly consistent (Figure 3).
Small Pin - Load vs. Extension Porcine Myocardium
Large Pin - Load vs. Extension for Printed Material

Elasticity

Elasticity was measured for each of the printed samples to determine each material’s flexural
and tensile behavior. The moduli of the printed materials ranged from 0.262 to 0.536 MPa with Agilus being the least flexible, compared with the digital myocardial material blends. Furthermore, the standard deviation for each material type tested was small, providing a high degree of confidence the printed samples would behave in the same way every time (Table 2).
Table 2 - Analogue of Young's Modulus Values for Printed Materials

Puncture Testing

Both Digital Anatomy and porcine myocardium had similar failure mechanisms. Both saw an initial peak force as the first tough layer was punctured; endocardium for the tissue and the first Agilus layer for the Digital Anatomy samples.

Suture Testing

The sutures cut through the printed material more easily than porcine tissue. However, this is also
given the specific suture setup used to prevent preliminary tearing of printed samples. If standard suture techniques were used it would’ve resulted in the printed material failing prior to testing. Regardless, the tissue and printed myocardium both showed delamination prior to failure.

Conclusion

Digital Anatomy 3D printed materials have great potential in fabricating patient-specific myocardium with accurate mechanical properties associated with gender, age, ethnicity, and other physiological and pathological characteristics. The results of this study suggest that the fabrication of patient specific tissue-mimicking heart models with both geometrical and mechanical accuracy is possible with the Stratasys J750 Digital Anatomy printer, software and material. Specifically, the Digital Anatomy material shows promise in its ability to replicate porcine tissue compliance consistently with minimal variation. This is a major advantage given the wide variability of porcine compliance in samples tested from the same area of the heart.

When developing new devices and understanding their functionality, repeatability between samples
and times of testing is very important to minimise confounding variables. The Digital Anatomy
printed myocardium shows high repeatability in stiffness value within the same sample tested multiple times, as well as between samples. This presents a significant advantage to medical device manufacturers seeking bench testing models to produce reliable and consistent results with minimal variability. It therefore lends itself to applications in product development where repeatability and reliability are of paramount importance.
Table 3 - Summary of Printed Myocardium Comparison to Porcine Tissue
Future work will be directed at improving the suturing and cutting properties of the Digital Anatomy material blends to more closely match the compliance of native tissue. Stratasys will continue to collaborate with leading medical device companies, hospitals, and research institutions to compare the digital anatomy materials to native tissue and bone. The data received from these organisations will be used to perfect new anatomical applications that more closely match the biomechanical properties of human anatomy in healthy and diseased states. The goal is to ultimately eliminate or at least minimise the need for cadaver and animal models.
